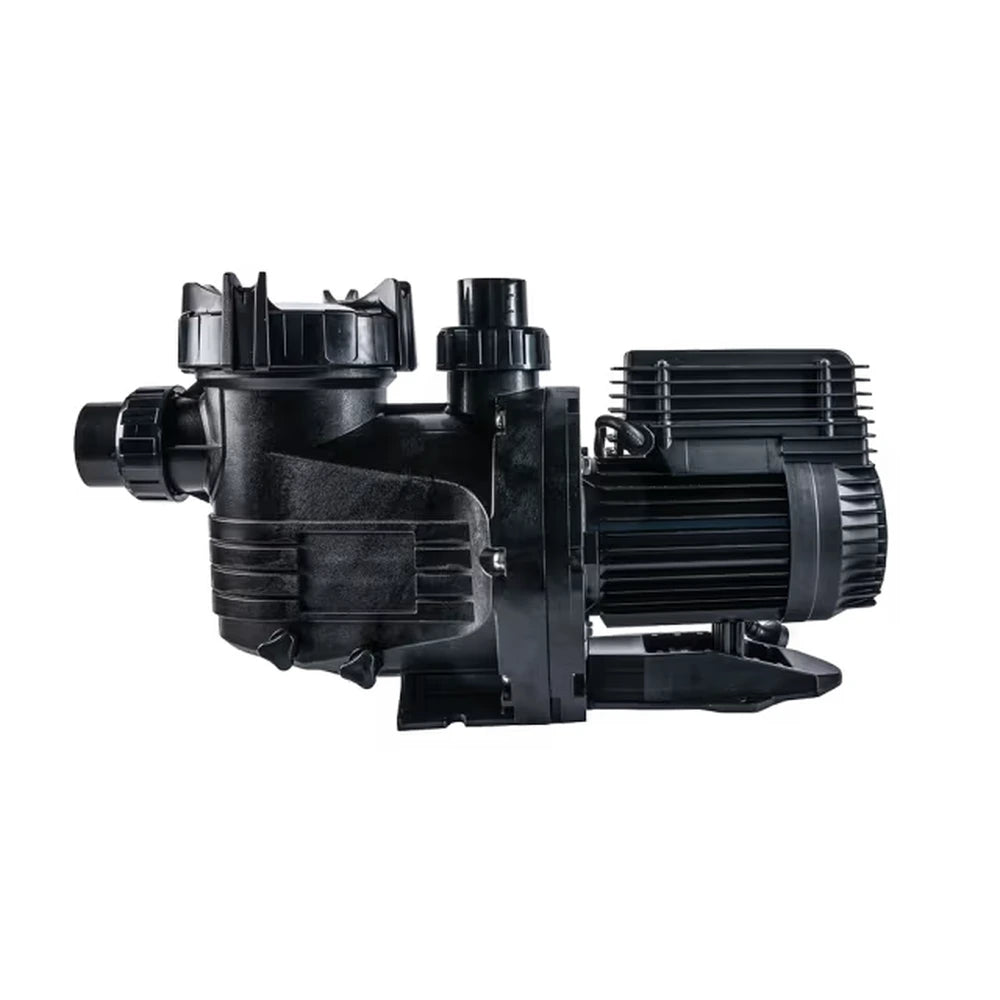

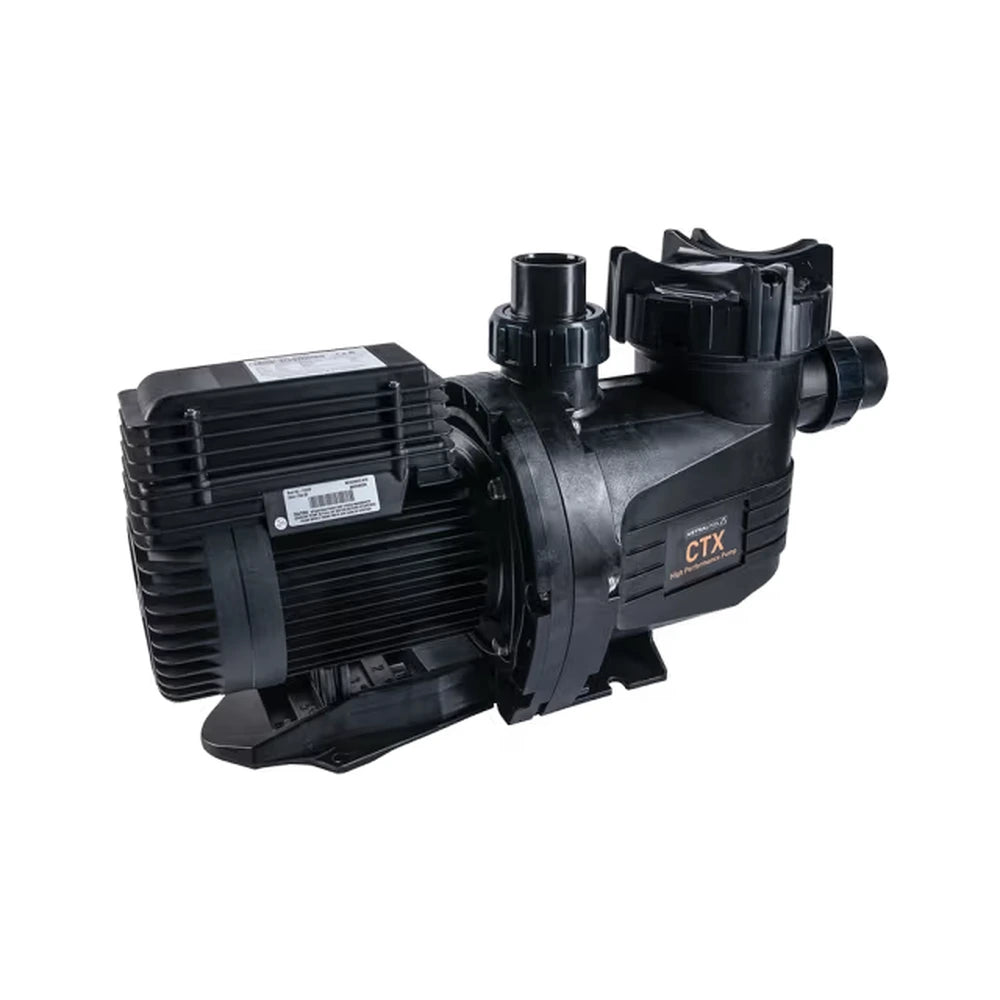

Astral CTX Pool Pump Range

Astral CTX Pool Pump Range

The Astral CTX is a single-speed pool pump range built for high performance and low maintenance, with four sizes covering everything from standard residential filtration up to demanding in-floor cleaning and spa jet applications. Every CTX pump shares a large lint pot for less frequent cleaning, an inbuilt non-return valve for easy priming, and a 30% glass-filled Noryl body built to handle Australian conditions. The CTX range is also a direct retrofit for older Hurlcon CX and TX pumps, sharing the same footprint for a straightforward swap with no plumbing changes.

Key Features

• Four sizes to match your pool and equipment demands — 1.0HP to 2.0HP
• Large-capacity strainer basket for less frequent cleaning
• Inbuilt non-return valve for quick, hassle-free priming
• High head pressure and strong overall performance for demanding equipment
• Quiet running design suited to residential installations
• 30% glass-filled Noryl pump body for durability and chemical resistance
• 50mm plumbing connections
• Direct retrofit for Hurlcon CX240, CX320, TX1.0, TX1.5 and TX2.0 pumps — no plumbing changes required

Specifications — CTX Range

Spec	CTX280C	CTX360C	CTX400C	CTX500C
Horsepower	1.00HP	1.25HP	1.50HP	2.00HP
Input Power	1,070W	1,140W	1,650W	1,900W
Max Flow Rate @ 8m head	280 L/min	360 L/min	400 L/min	500 L/min
Full Load Amps	4.5A	4.75A	7.2A	8.3A
Energy Consumption	1,280 kWh/yr	1,353 kWh/yr	1,572 kWh/yr	N/A
Voltage / Phase	240V, Single Phase
Speed Type	Single speed
Pump Body Material	30% glass-filled Noryl
Plumbing Size	50mm
Warranty	3 years (2 years on mechanical seal)
Replaces	Hurlcon CX240, CX320, TX1.0, TX1.5, TX2.0

Which Size Do I Need?

The right CTX size depends on your pool volume, plumbing and the demands of any in-floor cleaning or spa jet system. The CTX280C suits most standard residential filtration setups, while the CTX360C, CTX400C and CTX500C step up in flow rate and pressure for larger pools or higher-demand equipment. If you're unsure which size matches your current Hurlcon pump or pool setup, get in touch and we'll help you choose.

Frequently Asked Questions

Will the CTX fit my existing Hurlcon pump plumbing?
Yes — the CTX range shares the same footprint as the Hurlcon CX240, CX320, TX1.0, TX1.5 and TX2.0 pumps, so it's a like-for-like retrofit in most installations.

Are the CTX pumps energy efficient?
They're single-speed pumps, so running costs are higher than an equivalent variable-speed pump. For lower running costs, a variable-speed pump is a more energy-efficient alternative — our team can help you compare options.

What's covered under warranty?
Every CTX pump carries a 3-year manufacturer's warranty, with 2 years' cover on the mechanical seal.
