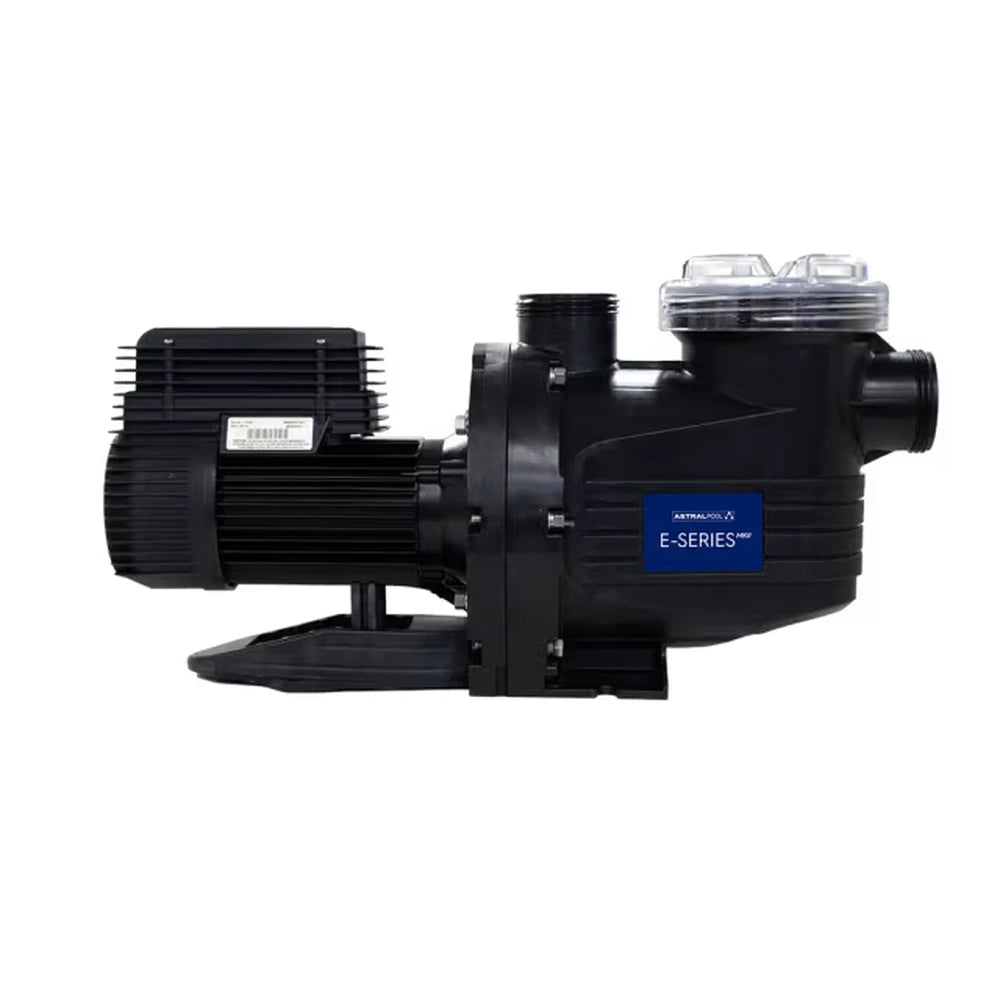

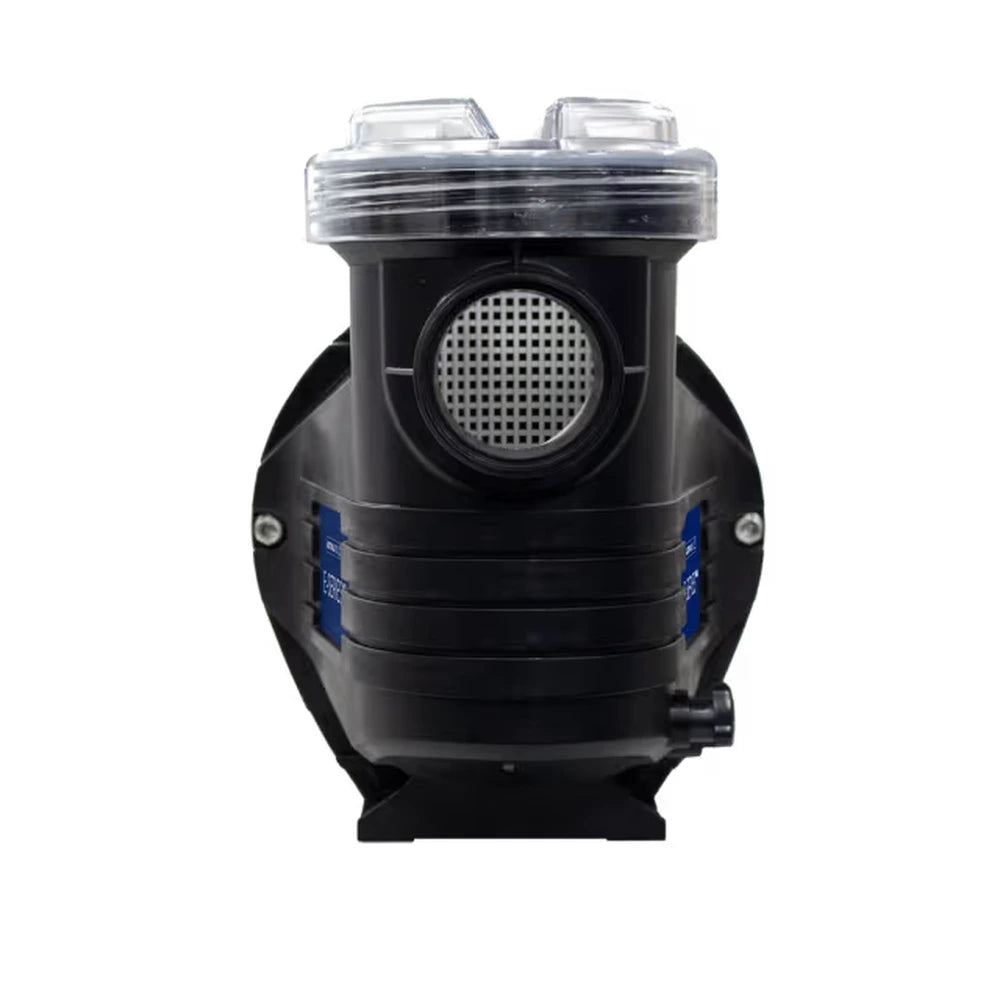

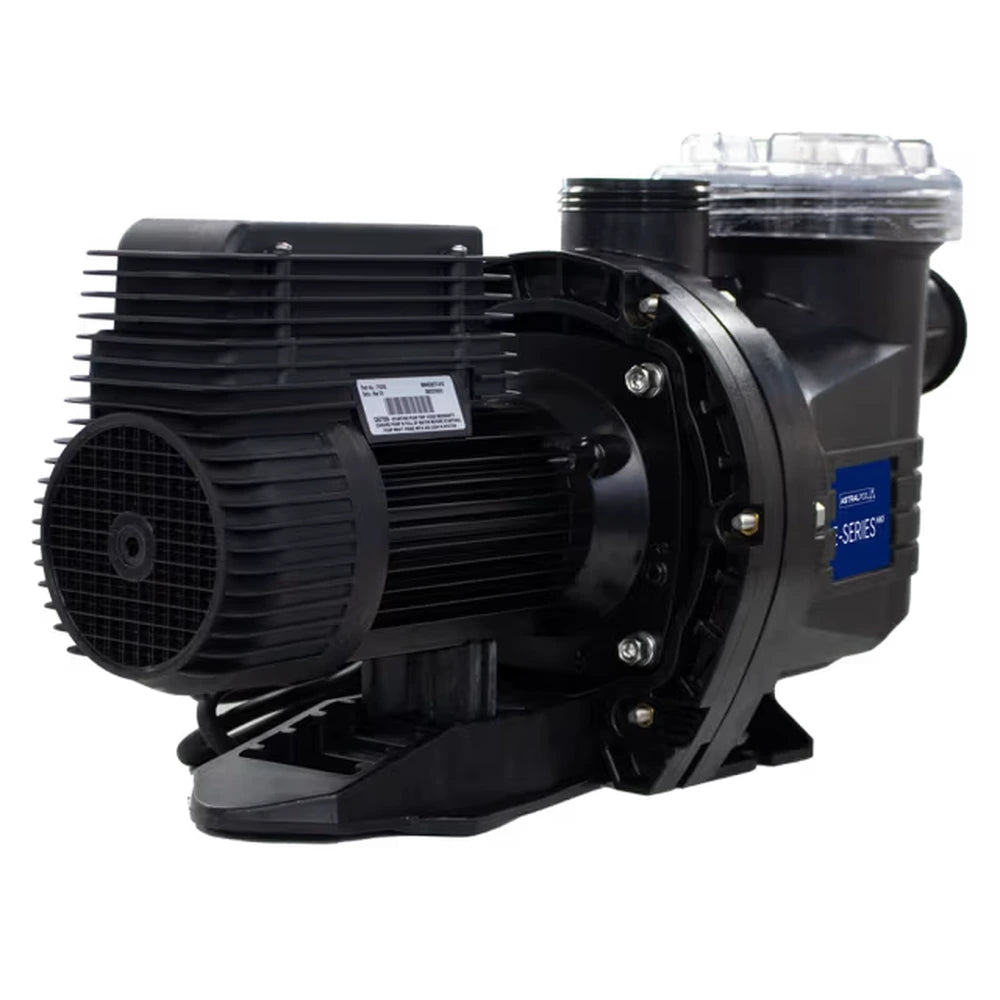

Astral E-Series Pool & Spa Pump Range

Astral E-Series Pool & Spa Pump Range

Not every pool needs a high-performance pump. The Astral E-Series is built for small to medium pools and spas up to 60,000 litres, giving you reliable, whisper-quiet filtration without paying for more pump than you need. Built with the same quality components and reliability standards as Astral's larger pumps, the E-Series is a cost-effective option for smaller and older pools that place less demand on their equipment. Available in three sizes: E140, E170 and E230.

Key Features

• Purpose-built for small to medium pools and spas up to 60,000L
• Whisper-quiet operation at 57dB(A)
• Durable, quality components for a long service life
• Requires less frequent cleaning and maintenance
• Higher flow rates using less power than an oversized pump
• Three sizes to match your exact pool volume

Specifications

Spec	E140	E170	E230
Horsepower	0.50HP	0.75HP	1.00HP
Input Power	650W	850W	925W
Max Flow Rate @ 8m head	140 L/min	170 L/min	230 L/min
Noise @ 1m	57dB(A)	57dB(A)	57dB(A)
Full Load Amps	2.9A	3.5A	3.9A
Energy Consumption	1,119 kWh/yr	1,141 kWh/yr	1,241 kWh/yr
Voltage / Phase	240V, Single Phase
Suitable Pool Volume	Up to 60,000L
Warranty	2 years (1 year on mechanical seal)

Which Size Do I Need?

The E140 suits smaller pools and spas with lighter filtration demands, the E170 covers most mid-sized residential pools, and the E230 is the step up for larger pools within the E-Series' 60,000L range. If you're unsure which size matches your pool volume, get in touch and we'll help you choose the right fit.

Frequently Asked Questions

Is the E-Series suitable for my pool?
The E-Series is designed for pools and spas up to 60,000 litres. For larger pools or higher-demand applications like in-floor cleaning, the Astral CTX range is a better fit.

How noisy is the E-Series pump?
All three sizes run at approximately 57dB(A) at 1 metre — comparable to a quiet conversation.

What's covered under warranty?
The E-Series carries a 2-year manufacturer's warranty, with 1 year's cover on the mechanical seal.
