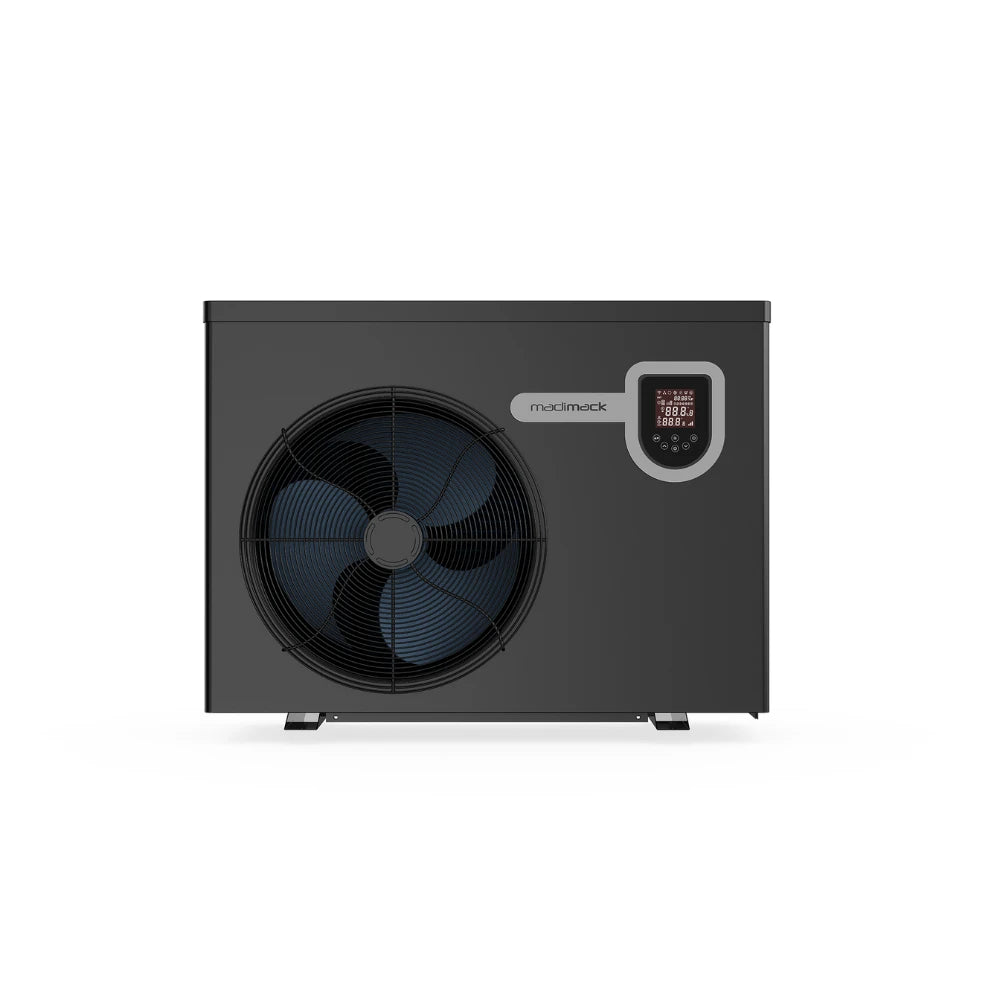

Madimack InverECO Plus 130 13kW Pool Heat Pump
Couldn't load pickup availability
The Madimack InverECO Plus 130 (Madimack model ECO PLUS 13kW, SKU HPECOPLUS130) is a 13kW single-phase inverter heat pump for heating and cooling your pool or spa. A full stepless DC compressor and inverter fan adjust output to demand, so it runs more quietly and efficiently than an on/off heat pump, with a COP of up to 10.8 on this model. WiFi control is standard, the casing is anti-corrosion ABS suited to high-salt areas, and the titanium heat exchanger carries a 25-year Madimack warranty. Previously listed on our site as the Madimack Invereco 130.
Who Is the InverECO Plus 130 Suited To?
Residential pool and spa owners who want an energy-efficient, quiet heat pump with remote control and the option to cool in summer. It operates in air temperatures from 0°C to 43°C, has reverse-cycle defrost for cooler weather, and has a small footprint (864 x 359 x 648mm) that suits tighter installation spaces. It's the second-smallest of the six InverECO Plus sizes: a step up from the 9kW when that's too small, without the extra capacity of the 16kW and above.
Key Features
- Full stepless DC inverter compressor and inverter fan for quieter operation than on/off heat pumps
- COP up to 10.8 at 27°C air / 27°C water; Madimack states savings of up to 66% compared with other forms of pool heating
- Heating and cooling (reverse cycle), with a set point of 12–40°C
- WiFi as a standard feature: adjust temperature and timers from your phone
- Anti-corrosion ABS casing and a small footprint suited to high-salt areas
- Twisted titanium heat exchanger with a 25-year Madimack warranty (see warranty schedule)
- Reverse-cycle defrost and active defrost function for cooler conditions
- Built-in flow switch and safety devices
- R32 refrigerant, and TüV Rheinland certified
- Low-energy and night-time modes, which Madimack states can improve efficiency by up to 20%
Specifications
| Model / SKU | Madimack ECO PLUS 13kW / HPECOPLUS130 |
|---|---|
| Heating capacity (air 27°C, water 27°C, 80% humidity) | 13.0kW |
| COP range (same conditions) | 10.8 – 6.3 (average COP at 50% speed: 9.2) |
| Heating capacity (air 15°C, water 26°C, 70% humidity) | 9.0kW |
| COP range (same conditions) | 6.2 – 4.5 (average COP at 50% speed: 6.0) |
| Cooling capacity (air 35°C, water 28°C, 80% humidity) | 5.0kW |
| Operating air temperature | 0 – 43°C |
| Temperature set point range | 12 – 40°C |
| Compressor | Full stepless DC compressor |
| Heat exchanger | Twisted titanium |
| Refrigerant | R32 |
| Power supply | 230V, single phase |
| Rated input power | 0.41 – 2.01kW |
| Rated input current / maximum | 1.76 – 8.70A / 10A |
| Sound level at 1m / at 10m | 43.9 – 54.0 dB(A) / 23.9 – 34.0 dB(A) |
| Advised water flow | 4 – 6 m³/h |
| Water connection | 40mm |
| Dimensions (L x W x H) | 864 x 359 x 648mm |
| Net / gross weight | 49kg / 55kg |
| Packaging dimensions | 950 x 375 x 675mm |
| Controls | Built-in controller, WiFi as standard |
| Warranty | 25 years on the titanium heat exchanger (see Madimack's warranty schedule for full terms) |
Figures are Madimack's published reference data; refer to the unit's nameplate for specific values.
Our Recommendation: Choosing the Right Size
The right heat pump size depends on your pool volume, whether you use a cover, how exposed the pool is to wind and shade, and the temperature you want to hold. A heat pump that's too small will run longer and struggle in cooler weather. Read our Madimack Heat Pump Buying Guide, or send us your pool size and whether you use a cover, and we'll recommend the right InverECO Plus size.
Other InverECO Plus Sizes
| Size | Madimack SKU | Heating capacity (air 27°C / water 27°C) |
|---|---|---|
| InverECO Plus 90 (9kW) | HPECOPLUS90 | 9.0kW |
| InverECO Plus 130 (13kW) — this model | HPECOPLUS130 | 13.0kW |
| InverECO Plus 160 (16kW) | HPECOPLUS160 | 16.0kW |
| InverECO Plus 200 (20kW) | HPECOPLUS200 | 20.2kW |
| InverECO Plus 240 (24kW) | HPECOPLUS240 | 24.2kW |
| InverECO Plus 280 (28kW) | HPECOPLUS280 | 28.0kW |
Documents
Buy From Drive In Pool & Spa Warehouse
Gordon NSW store • Expert sizing advice • Australia-wide shipping. For a freight quote or help choosing the right heat pump, contact us or call 02 9499 9646. Seen It Cheaper? Contact Us
Frequently Asked Questions
What temperature will the InverECO Plus 130 heat my pool to?
The set point range is 12–40°C, so you can hold a comfortable pool temperature even in cooler conditions.
Can it cool my pool as well as heat it?
Yes. It's a reverse-cycle heat pump with a published cooling capacity of 5.0kW (air 35°C, water 28°C, 80% humidity).
Does it run on single phase?
Yes. The InverECO Plus 130 runs on a 230V single-phase supply. The range includes six single-phase models up to 28kW.
How efficient is it?
This model's COP ranges from 10.8 down to 6.3 at 27°C air and water, and Madimack states the range can save up
to 66% compared with other forms of pool heating. Actual running costs depend on your pool, climate and usage.
How noisy is it?
Madimack publishes a sound level of 43.9–54.0 dB(A) at 1 metre (23.9–34.0 dB(A) at 10 metres), depending on the
operating speed.
Can I control it from my phone?
Yes. WiFi is a standard feature, so you can change the temperature and timers remotely.
What warranty does it have?
The titanium heat exchanger carries a 25-year Madimack warranty. See Madimack's warranty schedule for full terms
and conditions on the rest of the unit.
Is the InverECO Plus 130 suitable for salt pools?
Madimack designs the InverECO Plus with a corrosion-resistant casing for high-salt areas and a titanium heat
exchanger suited to a range of pool chemistry.
