Madimack InverELITE V4 410 41kW Three Phase Pool Heat Pump
Couldn't load pickup availability
The Madimack InverELITE V4 410 (Madimack model Elite V4 - 410) is a 41kW three-phase inverter pool heat pump with a published COP of up to 18.9. Madimack describes the InverELITE V4 as the world's most efficient and quietest pool heat pump. It combines a twin rotary Mitsubishi DC compressor, a commercial grade centrifugal fan and 3-directional airflow with triple-layer sound insulation, and it operates in air temperatures from -20°C to 43°C. Madimack's warranty runs to 25 years on the heat exchanger.
Who Is the InverELITE V4 410 Suited To?
Pool and spa owners who want the quietest and most efficient heat pump Madimack makes, including owners with neighbours close by or a pool close to living areas. The 41kW is hard wired on a 400V three-phase supply using a 5 x 2.5mm² cable, with a maximum input current of 12.5A and a 15A breaker rating, so it needs a three-phase supply and a licensed electrician. A published operating range down to -20°C also suits cooler climates and a longer swimming season. It's the largest of the nine InverELITE V4 sizes, for larger pools where the single-phase 33kW isn't enough.
Key Features
- Published COP of up to 18.9 at 27°C air / 27°C water, and 7.8 at 15°C air / 26°C water
- Triple-layer sound insulation (condensed fibre, foam and metal jacket), with a published sound level from 38.8 dB(A) at 1 metre
- 3-directional airflow, which Madimack describes as the world's first 3-directional ventilation, designed to reduce ventilation requirements and simplify installation
- Twin rotary Mitsubishi DC compressor; Madimack states the V4 has the fastest heat-up times of any pool heat pump
- Commercial grade centrifugal fan, and three internal reflectors
- Anti-corrosive, marine grade aluminium alloy casing

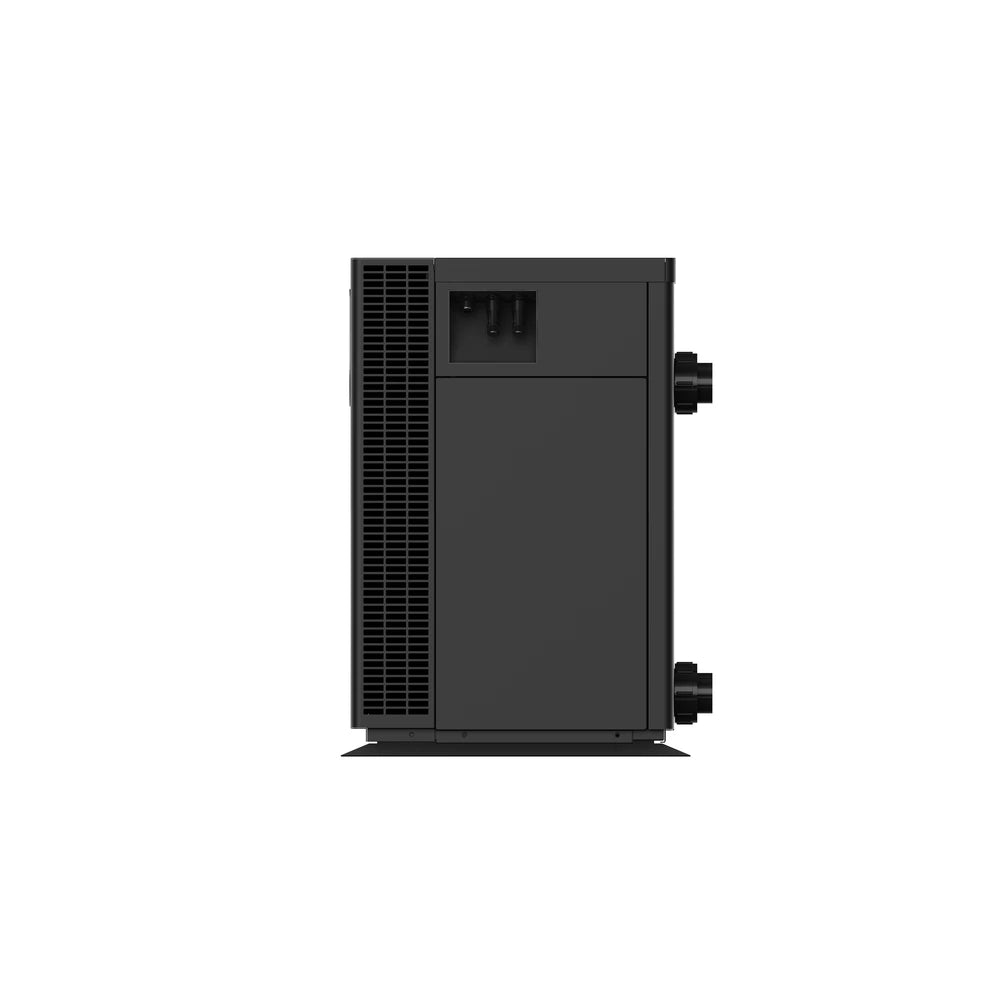

- Quick Connect: external, pre-fitted universal control plugs for easier installation and additional control

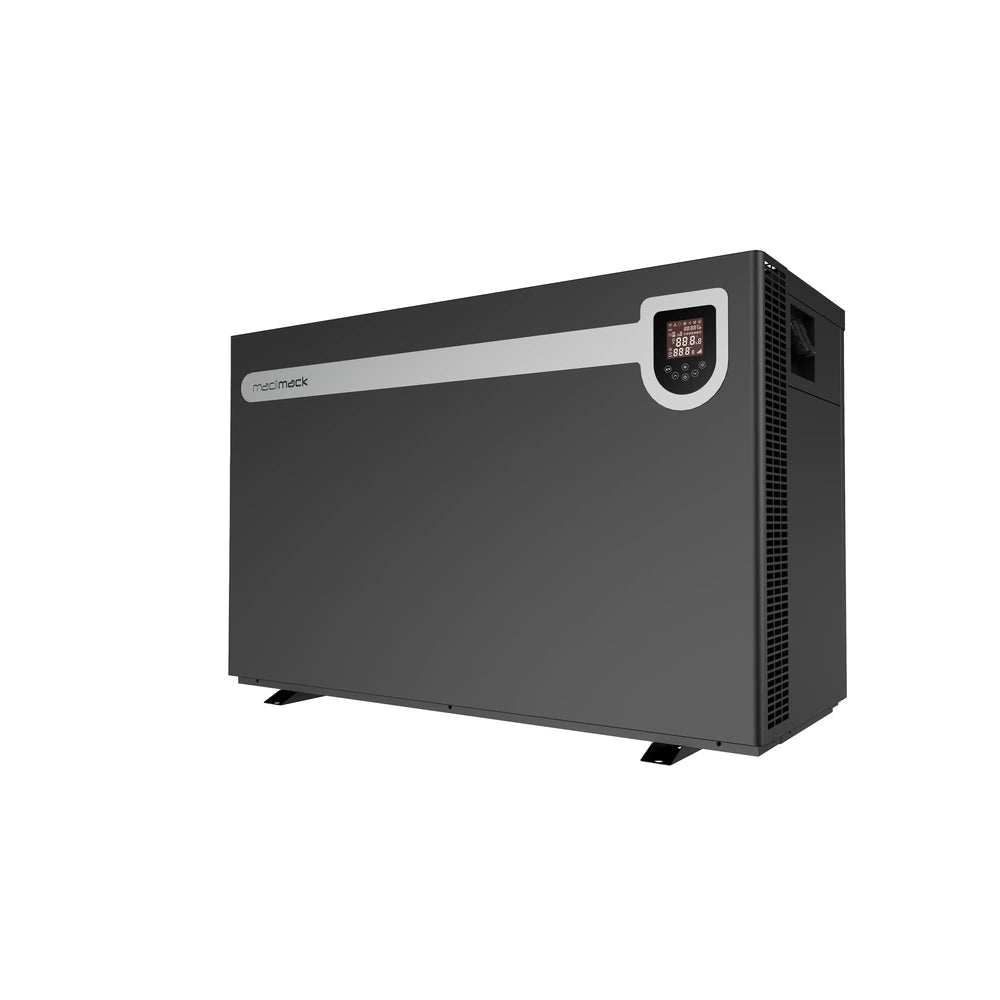

- Display screen for simple operation
- Heating and cooling (reverse cycle), with a set point of 5°C to 40°C
- Operates in air temperatures from -20°C to 43°C
- R-32 refrigerant
- Madimack warranties: 7 years on all parts, 15 years on the compressor, 25 years on the heat exchanger (see warranty schedule)
Specifications
| Model / model no. | Madimack InverELITE V4 41kW / Elite V4 - 410 |
|---|---|
| Heating capacity (air 27°C, water 27°C, 80% humidity) | 40.8kW |
| COP range (same conditions) | 18.9 – 7.0 |
| Heating capacity (air 15°C, water 26°C, 70% humidity) | 29.0kW |
| COP range (same conditions) | 7.8 – 5.0 |
| Cooling capacity (air 35°C, water 28°C, 80% humidity) | 20.0kW |
| Temperature set point range | 5 – 40°C |
| Operating air temperature | -20 – 43°C |
| Compressor | Twin-rotary Mitsubishi DC compressor |
| Casing | Aluminium alloy (marine grade, anti-corrosive) |
| Refrigerant | R-32 |
| Power supply | 400V, three phase |
| Electrical connection | Hard wired (5 x 2.5mm²) |
| Rated input power | 0.70 – 5.80kW |
| Rated input current / maximum | 1.01 – 8.41A / 12.5A |
| Breaker rated current | 15A |
| Sound level at 1m / at 10m | 38.8 – 49.3 dB(A) / 18.8 – 29.3 dB(A) |
| Advised water flow | 220 L/min (±20%) |
| Water pressure drop | 22kPa |
| Water connection | 40mm |
| Net / gross weight | 186kg / 216kg |
| Dimensions (L x W x H) | 1405 x 514 x 1070mm |
| Packaging dimensions (L x W x H) | 1475 x 560 x 1105mm |
| Warranty | 7 years all parts, 15 years compressor, 25 years heat exchanger (see Madimack's warranty schedule for full terms) |
Figures are Madimack's published reference data; refer to the unit's nameplate for specific values. Acoustic data is to TüV international testing conditions, and site conditions may differ.
Our Recommendation: Choosing the Right Size
The right heat pump size depends on your pool volume, whether you use a cover, how exposed the pool is to wind and shade, and the temperature you want to hold. A heat pump that's too small will run longer and struggle in cooler weather. Read our Madimack Heat Pump Buying Guide, or send us your pool size and whether you use a cover, and we'll recommend the right size.
Other InverELITE V4 Sizes
| Size | Madimack model no. | Heating capacity (air 27°C / water 27°C) | Electrical connection |
|---|---|---|---|
| InverELITE V4 100 (10kW) | V4-100 | 9.8kW | 10A plug |
| InverELITE V4 120 (12kW) | V4-120 | 11.8kW | 10A plug |
| InverELITE V4 140 (14kW) | V4-140 | 14.2kW | 10A plug |
| InverELITE V4 170 (17kW) | V4-170 | 17.0kW | Hard wired |
| InverELITE V4 190 (19kW) | V4-190 | 19.0kW | Hard wired |
| InverELITE V4 230 (23kW) | V4-230 | 23.0kW | Hard wired |
| InverELITE V4 270 (27kW) | V4-270 | 27.0kW | Hard wired |
| InverELITE V4 330 (33kW) | V4-330 | 33.0kW | Hard wired |
| InverELITE V4 410 (41kW) — this model | V4-410 | 40.8kW | Hard wired (400V three phase) |
InverELITE V4 vs InverECLIPSE Plus vs InverECO Plus
The InverELITE V4 41kW is the largest model in any of Madimack's three residential ranges, and the only three-phase one. Here's how it compares with the largest model in each of the other two ranges, the 26kW InverECLIPSE Plus and 28kW InverECO Plus, on their published figures.
| Spec | InverELITE V4 41kW | InverECLIPSE Plus 26kW | InverECO Plus 28kW |
|---|---|---|---|
| Power supply | 400V, three phase | 240V, single phase | 230V, single phase |
| Heating capacity (air 27°C / water 27°C) | 40.8kW | 26.0kW | 28.0kW |
| COP range (same conditions) | 18.9 – 7.0 | 15.0 – 6.9 | 11.0 – 6.3 |
| Operating air temperature | -20 – 43°C | -10 – 43°C | 0 – 43°C |
| Sound level at 1m | 38.8 – 49.3 dB(A) | 41.5 – 55.2 dB(A) | 48.6 – 60.5 dB(A) |
| Casing | Aluminium alloy | Marine grade aluminium alloy | Anti-corrosion ABS |
| Dimensions (L x W x H) | 1405 x 514 x 1070mm | 780 x 710 x 756mm | 1122 x 415 x 958mm |
| Net weight | 186kg | 88kg | 90kg |
Documents
Buy From Drive In Pool & Spa Warehouse
Gordon NSW store • Expert sizing advice • Australia-wide shipping. For a freight quote or help choosing the right heat pump, contact us or call 02 9499 9646. Seen It Cheaper? Contact Us
Frequently Asked Questions
How efficient is the InverELITE V4 410?
Madimack publishes a COP of up to 18.9 for this model at 27°C air and 27°C water, falling to 7.0 at the other end
of the range, and 7.8 to 5.0 at 15°C air and 26°C water. Actual running costs depend on your pool, climate and usage.
How quiet is it?
The V4 uses triple-layer sound insulation, and Madimack publishes a sound level of 38.8 to 49.3 dB(A) at 1 metre
(18.8 to 29.3 dB(A) at 10 metres) for this model, depending on operating speed. Acoustic data is to TüV testing
conditions, and site conditions may differ.
Does it work in cold weather?
Yes. The V4 has a published operating air temperature range of -20°C to 43°C.
Can it cool my pool as well as heat it?
Yes. It's a reverse-cycle heat pump with a published cooling capacity of 20.0kW (air 35°C, water 28°C, 80% humidity).
What power connection does the 41kW need?
The InverELITE V4 410 runs on a 400V three-phase supply and is hard wired using a 5 x 2.5mm² cable, with a
maximum input current of 12.5A and a 15A breaker rating. Have a licensed electrician install it and confirm you
have a suitable three-phase supply.
What is Quick Connect?
Quick Connect is Madimack's name for external, pre-fitted universal control plugs on the V4, which make
installation easier and give extra control options.
What warranty does it have?
Madimack lists 7 years on all parts, 15 years on the compressor and 25 years on the heat exchanger. See Madimack's
warranty schedule for the full terms.
